| Place of Origin |
Zhejiang China (Mainland) |
| Brand Name |
RELIABLE |
| Model Number |
TLC-ZB1000W |
| Size |
510*430*210mm |
| Weight |
16.8 |
| Input Voltage |
DC-100-500V |
| Output Voltage |
AC220V |
| Output Frequency |
50-60Hz |
| Output Power |
500 - 1000W |
| Output Type |
Single |
| Type |
DC/AC Inverters |

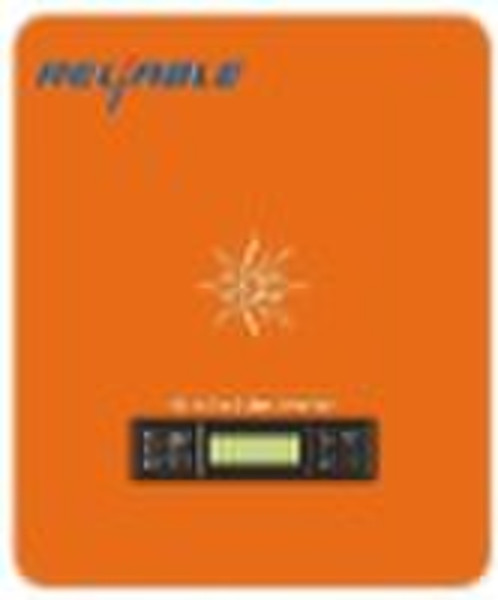

1000W Grid Tie Solar InverterSummarizeThe grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.Features*Wide DC input voltage range*DSP controller*High efficiency by using advanced IGBT and IPM*MPPT(Maximum power point tracking) technology*Less-transformer, High efficiency*In accordance with international standards*Quick and easy installation*Operation parameters can be adjusted via LCD and keys*The perfect protection function*Designed to suitable for critical grid environmentNote: Appearance of product can be customized by customer request.Technical DataModelTLS-ZB 1000WDC InputMPPT Voltage RangeDC100 500VRated DC Voltage360VControl SystemMPPTAC OutputOutput Power1000WRate voltageAC220VVoltage rangeAC 185 264V (1 phase)Normal Grid Frequency50/60Hz(Grid frequency)Phases1 phase 2 wirePower Factormore than 0.95Current THDAt rated power and in the sine wave <5%Control SystemPWMAnti-islanding≤0.5 secOutput Overload100%Max. Efficiency97%Euro Efficiency96.4%StructureProtection ClassIP65Cooling systemNatural coolingNoiseless than 50dBData InterfacesExternal RS232C/RS485Web Module( Option)RS232C to TCP/IPDisplayLCDDimensions(W*H*D)510*430*210mmWeight16.8kgsProtectionInverterInput overvoltage, output short circuit, overheat, output DC component.GridAnti-islanding, over/under voltage of grid, over/under frequency of grid.EnvironmentEnvironmentNo corrosion gas, flammable gas, oil mist, dust etc.Operation temperature-10°C 40°C(50°C)Stored temperature-20°C 65°CRelative humidity0 100% (Do not wet with dew)
