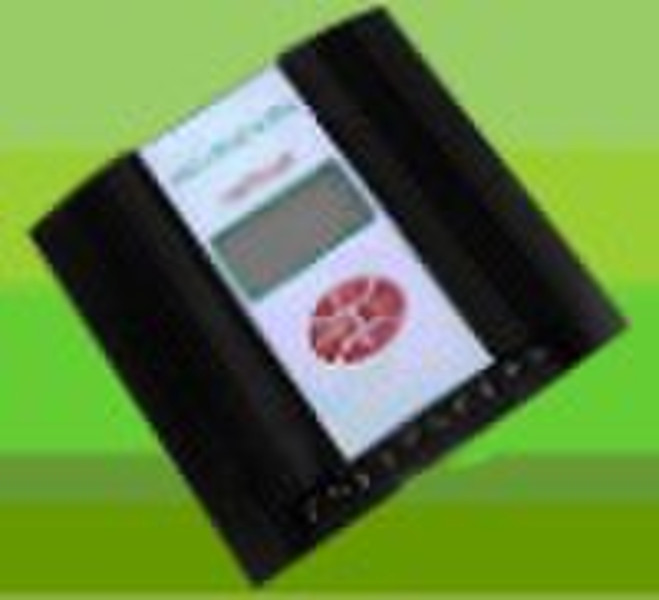

Advanced Wind/Solar Hybrid street light controller

Advanced Wind/Solar Hybrid Street Light Controller PERFORMANCE FEATURES: 1. Perfect protection and alarming function, thus the system has a high stability 2. LCD display function, visually display all operation parameters 3. Voltage-limiting and current-limiting charging mode, ensures battery in the best charging status 4. Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection 5. PWM stepless unloading mode, which burn the excess power in dump load, making the battery charging in the best status 6. A multiple communication interface selection, realising PC monitoring function. The standard mode is RS232 communication, and other optional model RS485 / Ethernet/GPRS etc 7. Design of high quality aluminum alloy appearance, with small size and good cooling effect 8. Optional wind turbine low-voltage charge function, making full use of low wind power 9. Optional by-pass function ensures the continuity and stability of system operation 10.Optional multiple control system function, real-time monitoring the multiple control system at the same time, with well-organized and exact monitoring interface. TECHNICAL PARAMETERS: Model WWS03A-12WWS06A-24Rated Battery Voltage 12V24VRated Wind Turbine Power 300W600WWind Turbine Maximum Input Current 40A40AWind Turbine Maximum Input Power 500W1000WUnload Voltage(factory default) 14V28VUnload Current(factory default) 25A25APV Charge Current 10A10ABattery Over-discharge Voltage Shutoff 11V22VBattery Over-discharge Recovery 12V24VOutput Protection Voltage 16V32VPV Voltage Of Light-Control On Adjustable(1V)Adjustable(2V)PV Voltage Of Light-Control Off Adjustable(1.5V)Adjustable(3V)Line 1 Rated Output Current 10A10ALine 2 Rated Output Current 10A10ALine 1 Output Mode(Factory Default) 3 Modes selection(Light-control on and Light-control off)3 Modes selection(Light-control on and Light-control off)Line 2 Output Mode(Factory Default) 3 Modes selection(Light-control on and time-control 5 hours)3 Modes selection(Light-control on and time-control 5 hours)Control Mode PWMDisplay Mode LCDDisplay Parameters Wind Turbine Power,Wind Turbine Voltage,Wind Turbine Current,PV Voltage,PV Charge Current,PV Power, Battery Voltage,Ove-Voltage,Under-Voltage, Over-load, short circuit.EtcWorking Temperature &Humidity -20 +55°C/35 85%RH(Without Condensation)Quiescent Current 20±2 mAProtection Function Solar reverse-charging protection , solar reverse-connection protection,battery over charge protection,battery over-discharge protection,battery reverse-connection protection, lightning protecting,wind turbine current limitting, wind turbine automatic brake and manual brake.In order to serve our customers better.Our company can adjust parameters configuration according to customer’s requirement.
